ADR Standard 45000 Liters Road Tanker Trailer With 4 Axles For Fuel Transport
I. Application
Use for carry fuel,oil,gasoline
II. Feature
1. Follow the ADR standard to design and produce, popular in Burkina Faso etc. Western African countires.
2. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
3. The gravity center of fuel tanker trailer is designed as low as possible to minimize the risks of overturns. More suitable use in rush roads. More safe for fuel transport.
4. Advanced pneumatic operating discharge system, emergency foot valves with aluminum alloy material for each compartment.
5. Optional for a bottom loading fuel tanker trailer, can install the API adaptor valves, anti-overfill and vapor recovery system as your request.
III. Quality guarantee
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment, ensure to meet your local road regulation.
IV. Specification
| Style | 45,000 liters 4-axle Carbon Steel Fuel Tanker Semi-trailer |
| Dimensions(mm) | 12300*2500*3700 |
| Load capacity(kgs) | 45000 |
| Compartment Number | 4 (15000L/7500L/7500L/15000L) |
| Effective Cubage | 45,000 liters |
| Axle | BPW Brand 13 tons,4 axles |
| Suspension | 3 axles with spring and 1 axles with airbag and lifting |
| Type of landing legs | JOST 19" |
| King pin | JOST 3.5“ bolt-in |
| Tire | 315/80R22.5 |
| Rim | 9.00*22.5 |
| Braking system | Two of Wabco Re-6 relay vavle,4 units of MBA T30/30 spring chamber
4S/2M ABS system |
| Manhole | Φ500 |
| Discharge valve | 4pcs of 3” |
| Discharge system | pneumatic operating |
| Discharge horse | 2x6m |
| Bottom vavle | 4 pcs |

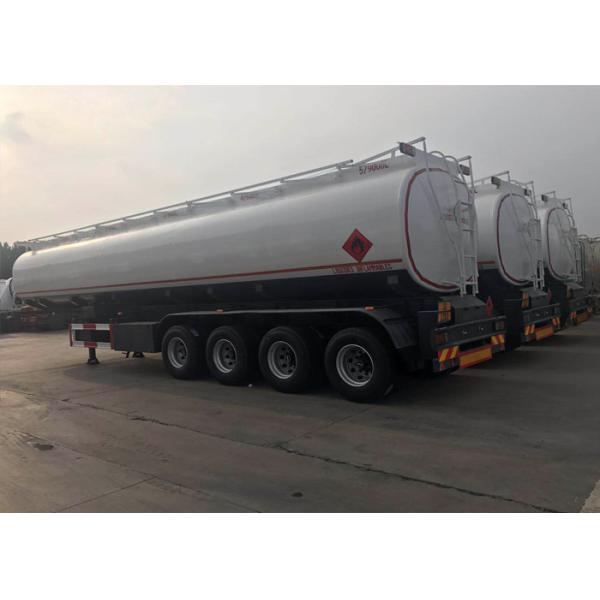

V. Detailed Photo
